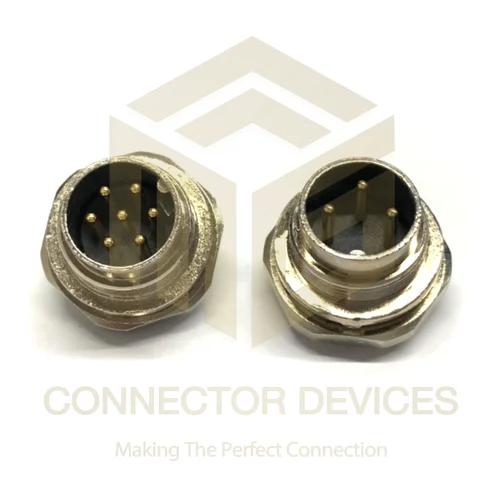

M16 Male Connector Panel Type

Brand Name – Connector Devices

• Number Of Contacts : 3 Pin TO 12 PIN
• Male Female Cable
• Insulator Material: Glass Filled PBT
• Shell Material: Die Cast Zinc
• Contact Material: Copper Alloy
• Shell Finish: Nickel Plating
• Contact Finish: Silver Plating At The Contacting Area & Tin Lead Plated At Termination
• Contact Resistance: ≤ 5 ohms max.
• Insulation Resistance : ≥ 5000 Megaohms
• Voltage Proof: 750V rms
• Colour Of Insulator: Black
• Operating Voltage: 250V AC
• Operating Temperature: -40  to +85
